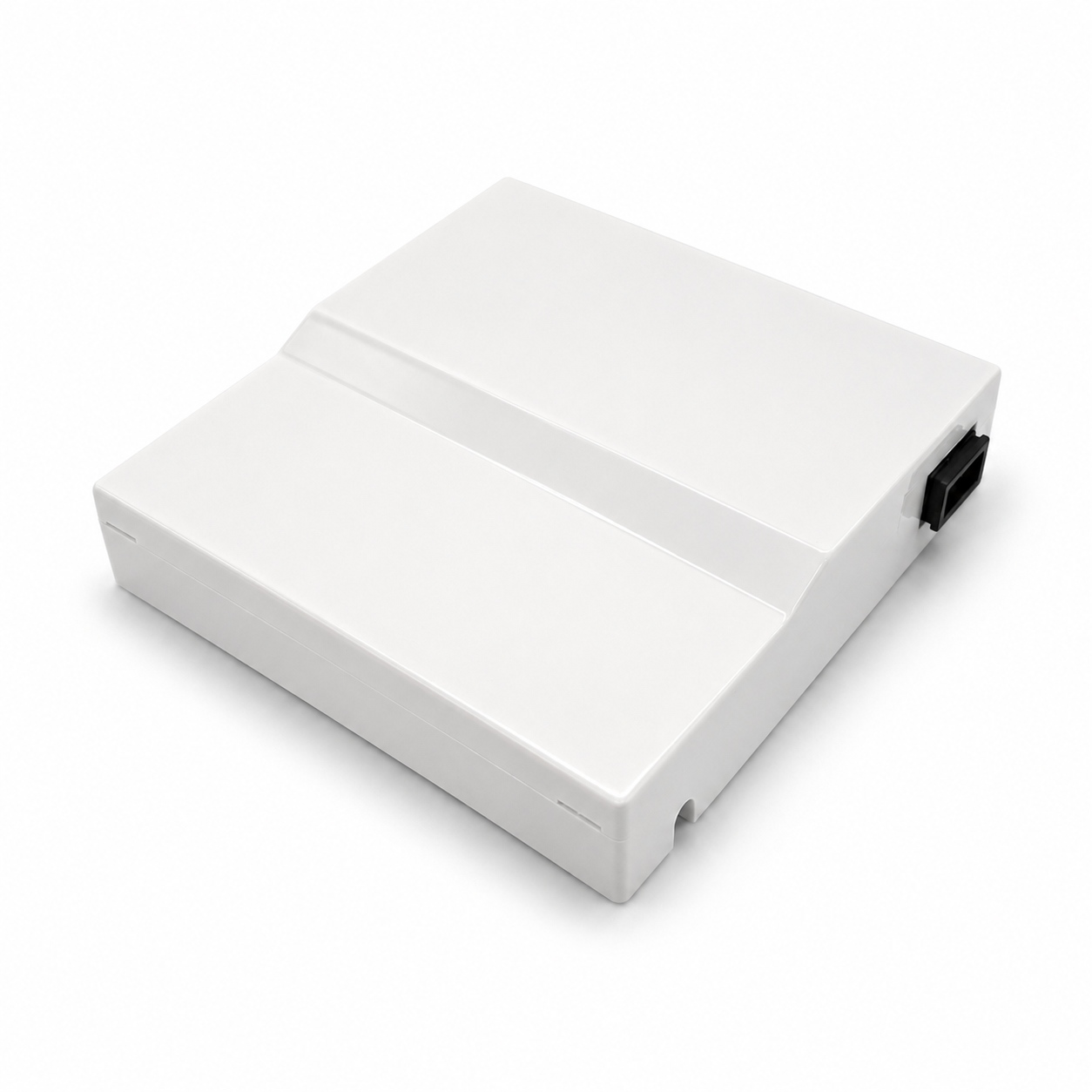

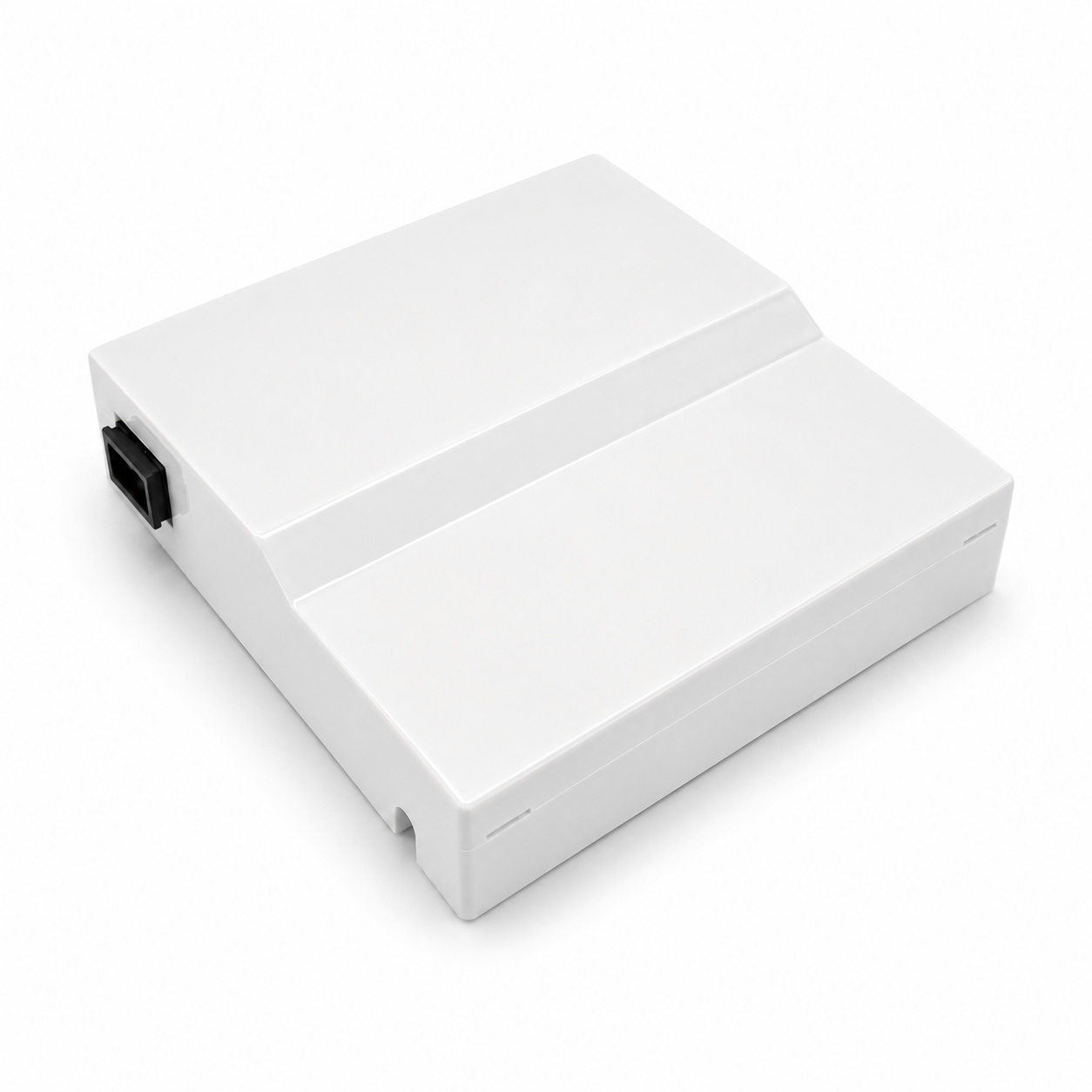

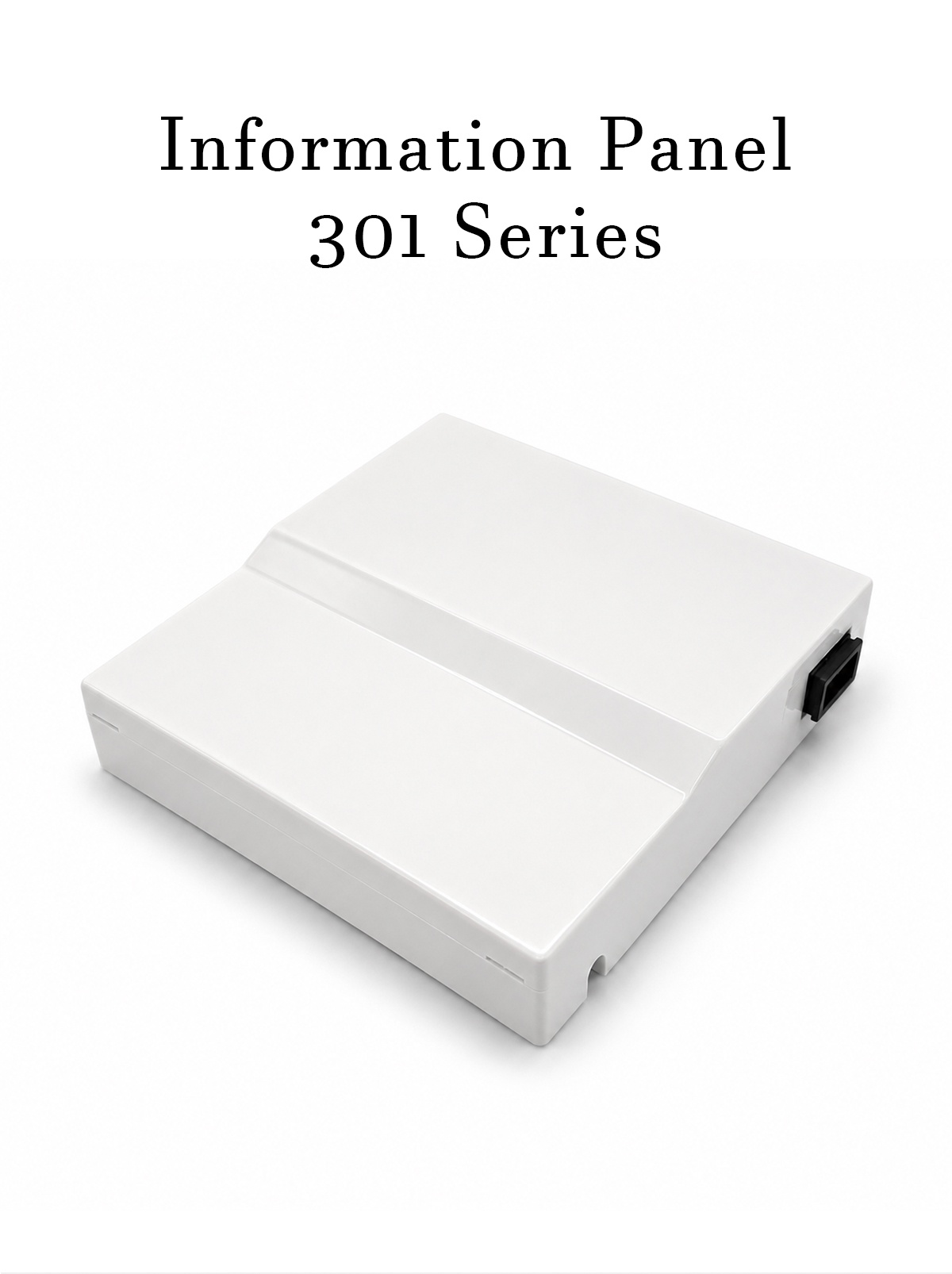

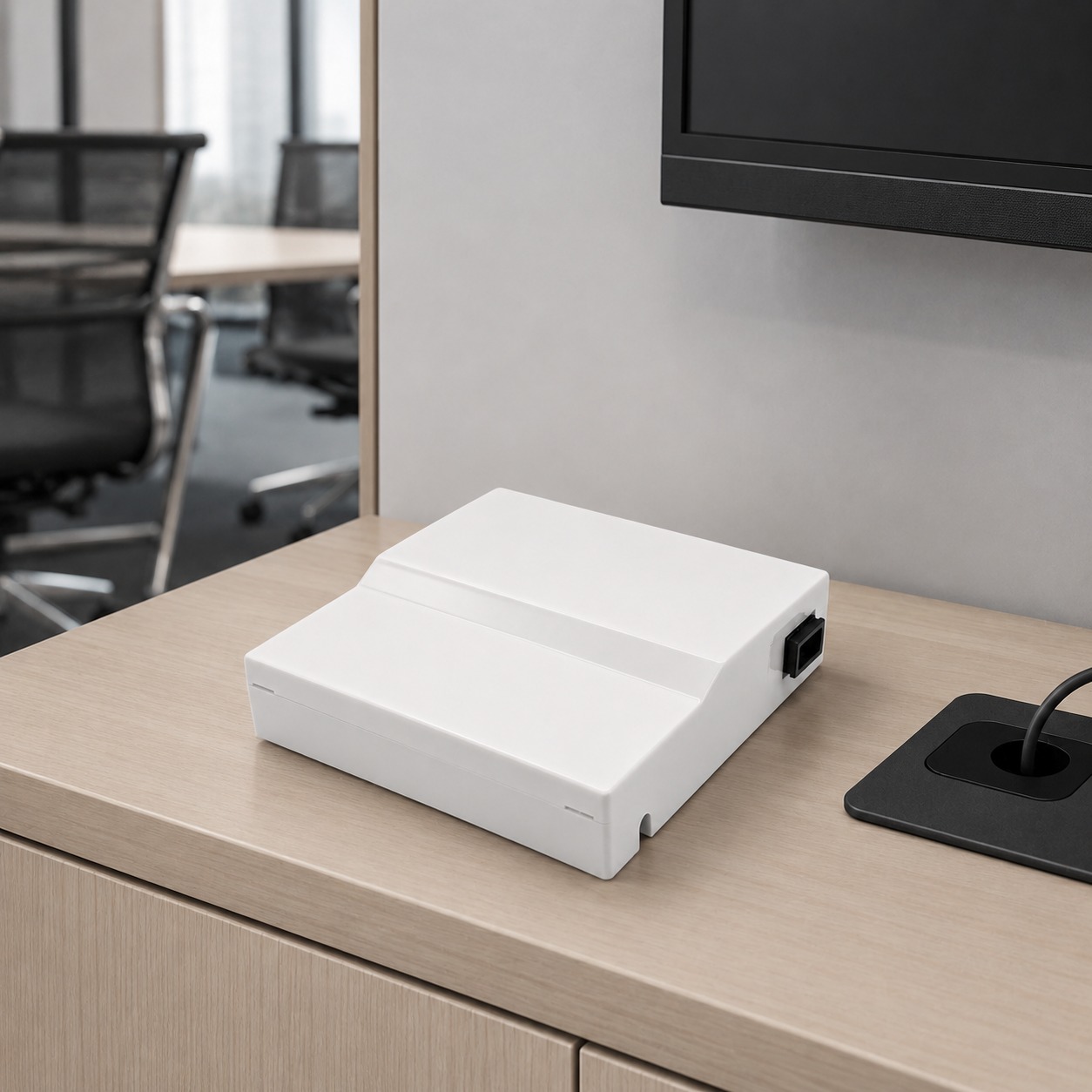

Information panel: 301 series

Product Name: Information Panel
Product Model: 301 Series

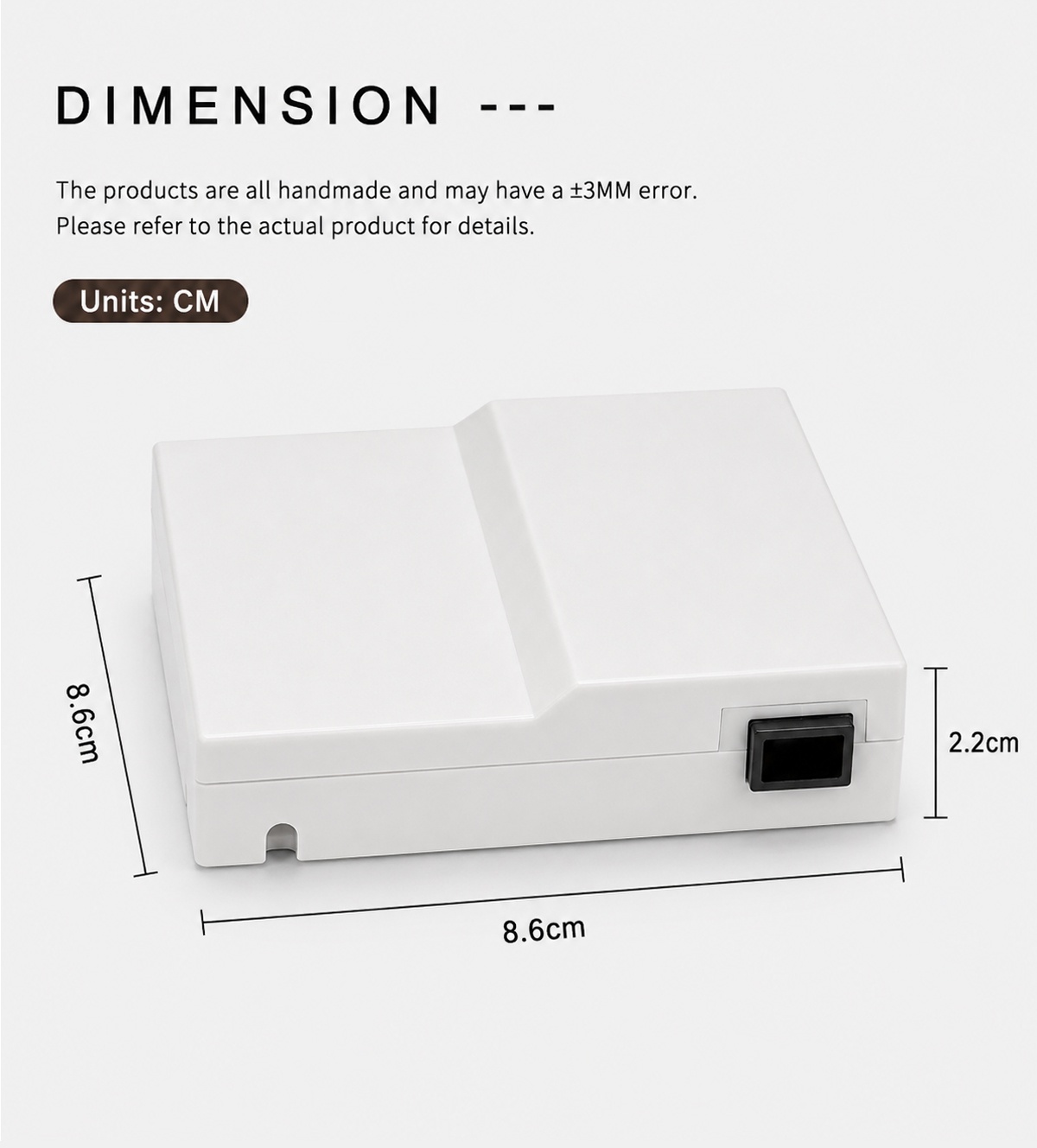

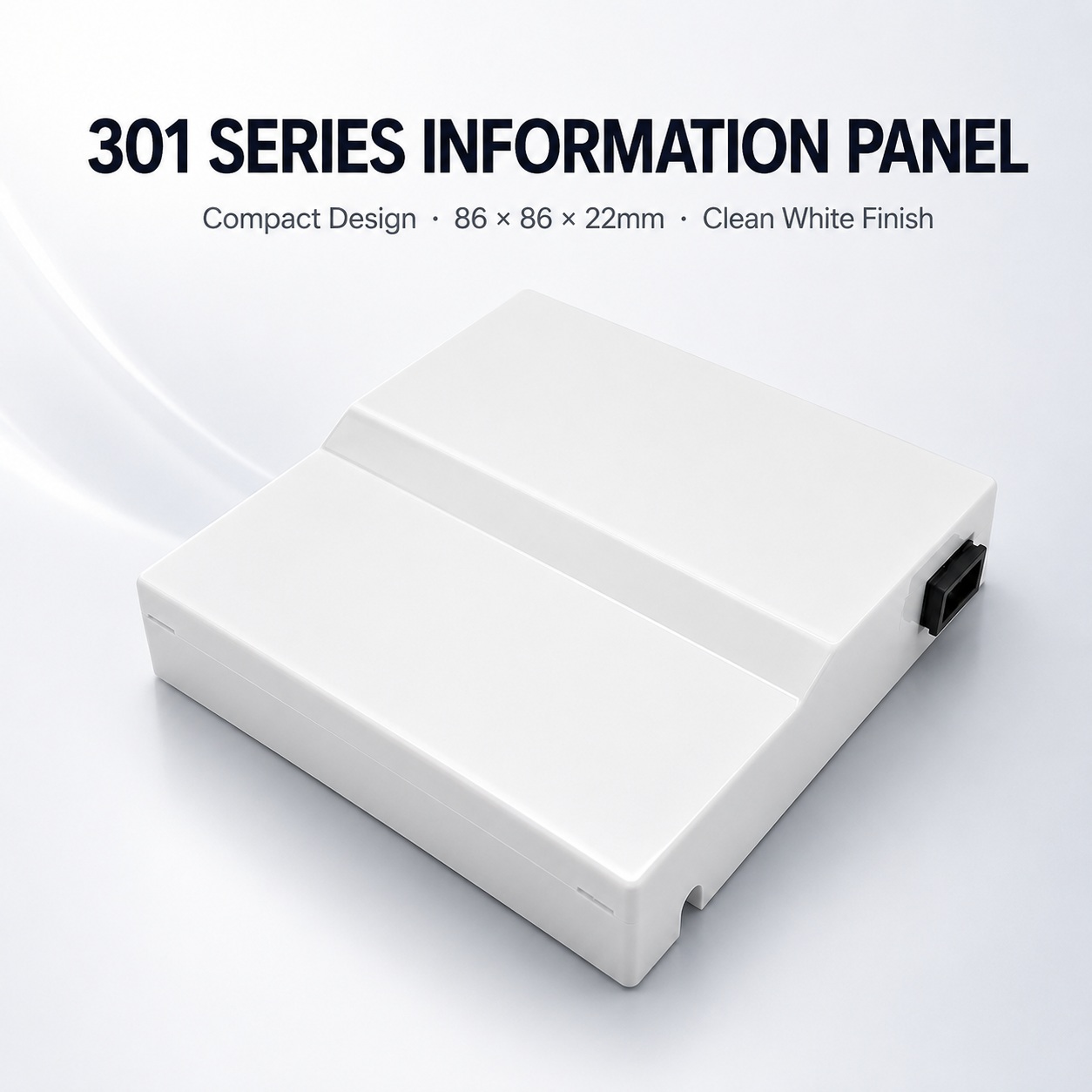

Size Requirements: 86*86*22mm (±2mm)

Material Requirements:
1. Box Material: PVC+ABS;
2. Internal Metal Components: Stainless Steel 304.

Salt Spray Requirements:
Salt Solution: 5 (±0.1)% NaCl, 6.5 < pH < 7.2, Temperature: 35°C (±2°C);
Salt Spray Duration: 48h.

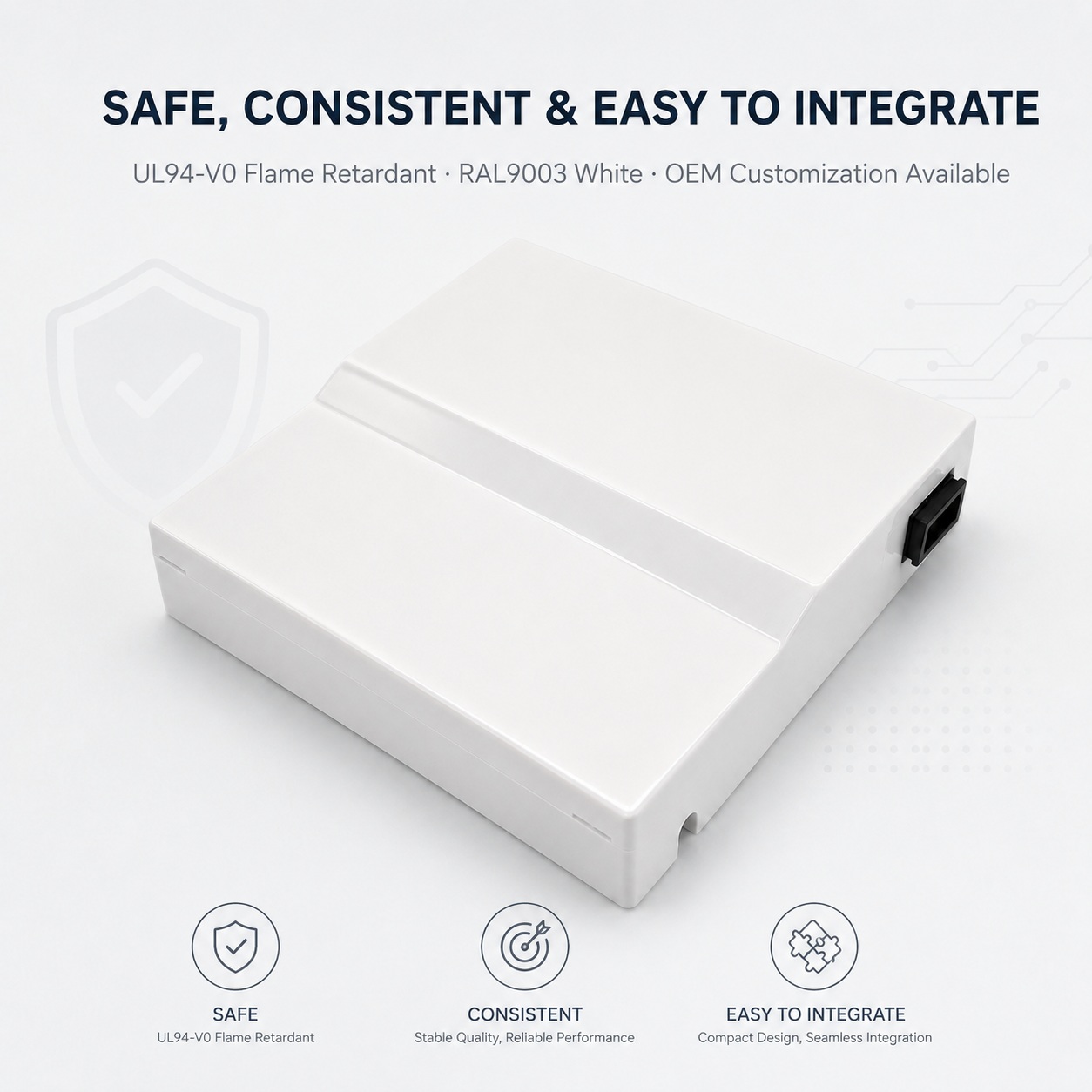

Flame retardant requirements: The box body meets UL94-VO flame retardant standards.

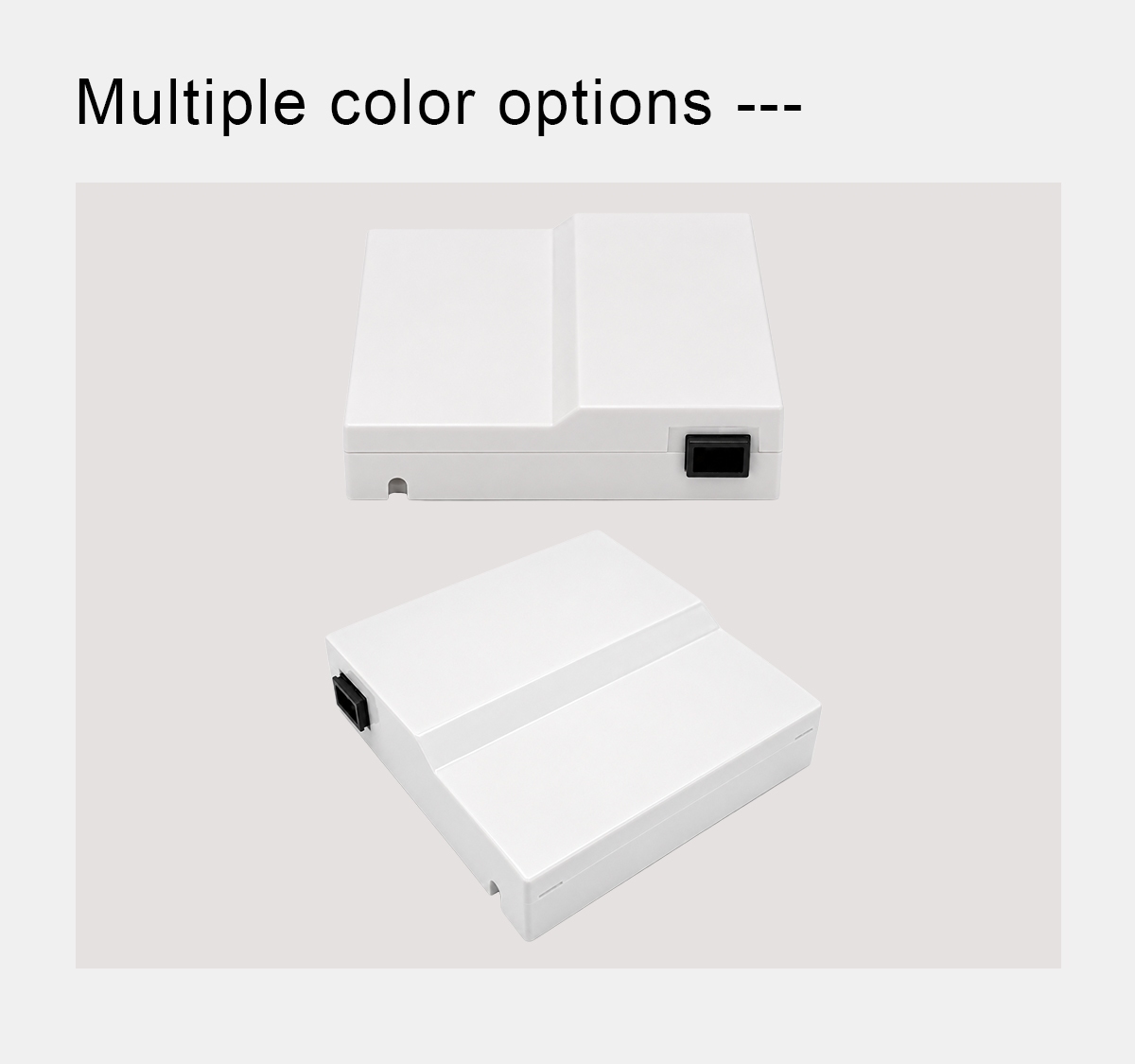

Appearance requirements: Box color: RAL9003 white, AE≤3

Packaging dimensions:
1. Individual products are packaged in white cardboard boxes, with dimensions of 90*90*30mm (0～2mm);
2. 100 products are placed in a carton made of five-layer corrugated cardboard, with dimensions of 485*395*185mm (0～5mm);

Net weight: 50g/pc
Packaged weight: 67g/pc
